E-STOP Splitter 12

On request

Request a Quote


Every new Kvant laser display projector is delivered with a top-quality E-STOP system that fulfils all the safety features required by legislation. It allows you to control one or more projectors when connected in series.

However, in some situations, you may need to control the E-STOP signal from various positions within the setup and/or manage more lasers that are split into multiple groups.

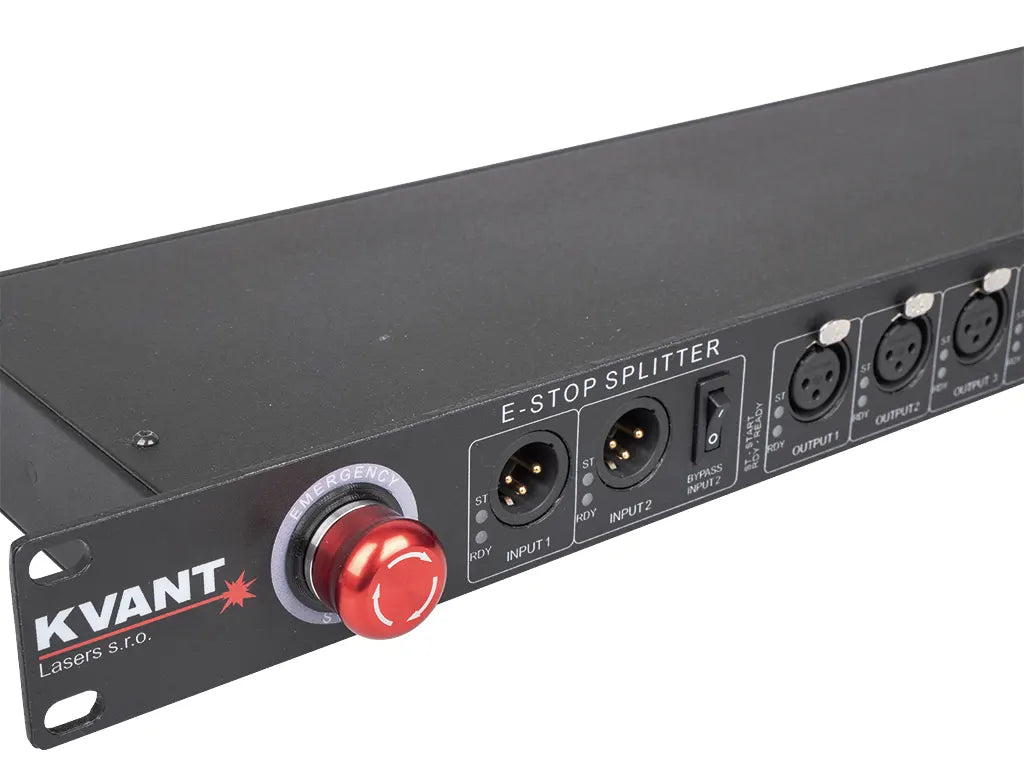

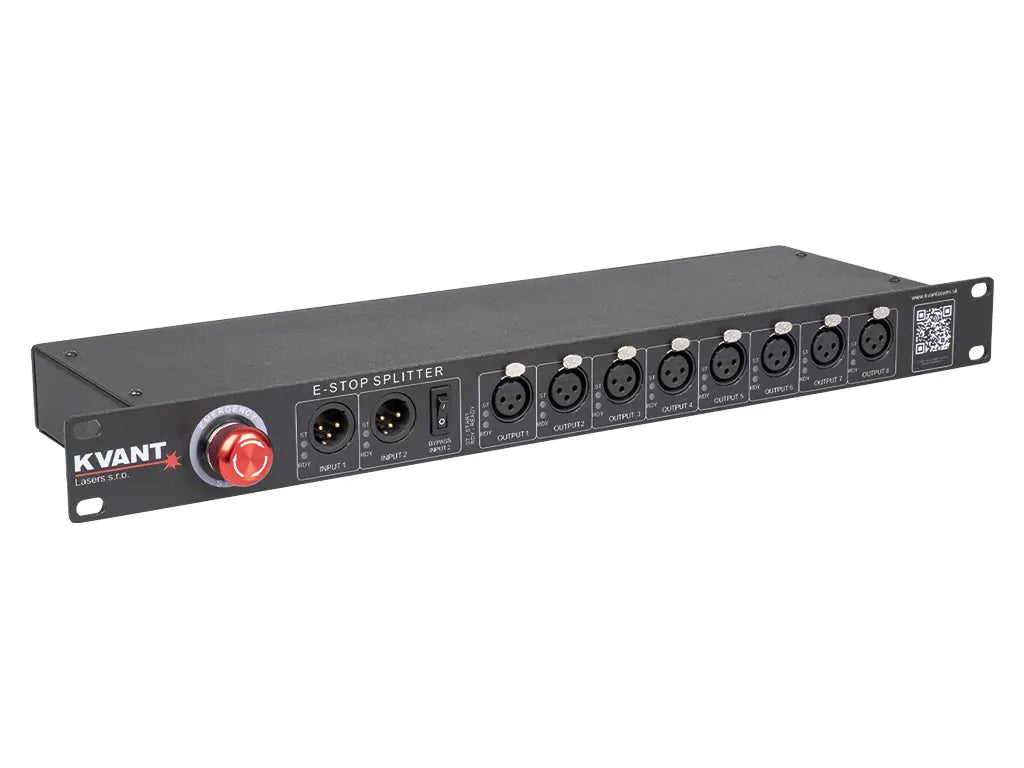

The new 8-output or 12-output E-STOP splitter box offers so many ways how the E-STOP signal can be spread across all the Kvant lasers in a given setup.
The splitter box distributes the signal in a parallel way, making it possible to connect a virtually unlimited number of laser projectors and control them at once/or per group. Each splitter has two E-STOP remote inputs, which allows for two E-STOP remote positions (a.i. FOH and stage) per setup or sub-group.
E-STOP splitter gives you a virtually unlimited number of ways how the e-stop signal can be routed.

Show Full Description


No. of Inputs:
2x 3-pin XLR
No. of Outputs: 12x 3-pin XLR

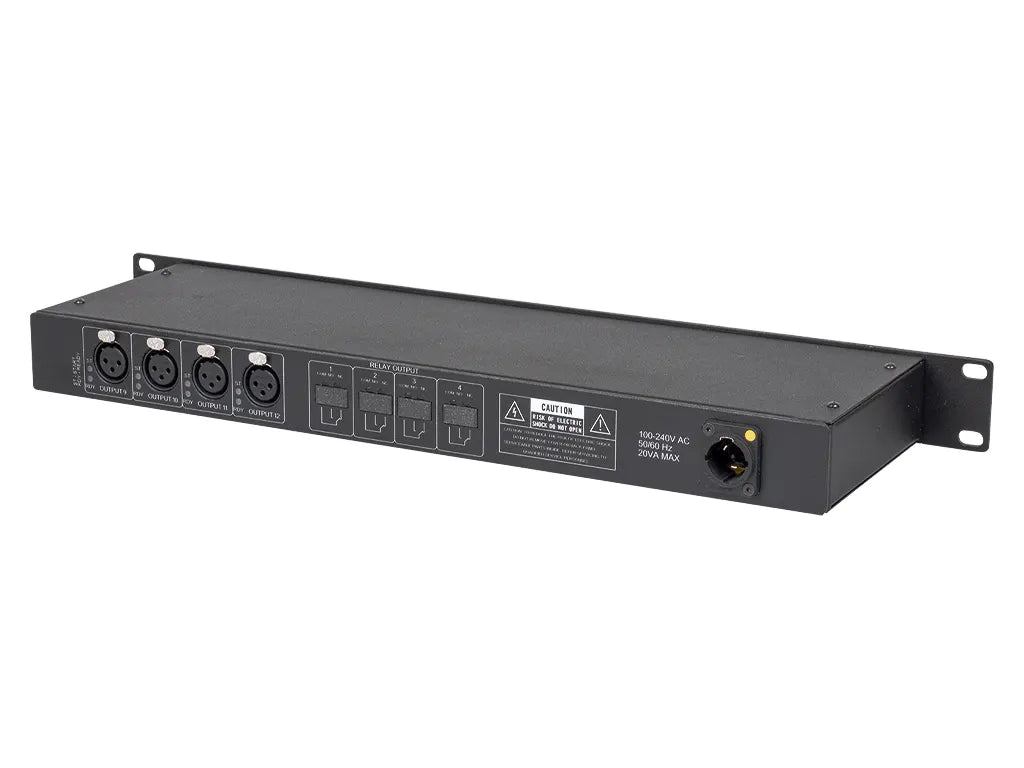

Power requirements [V] | Input: 100-230, 50Hz
Outputs: Optically Isolated from each other, each output is ESD protected and is "power cross safe", each output can control an unlimited number of Kvant laser projectors.
Control Distance: Cable length can be from short distances to 500m or even 1000m is tested to have no issues. Use only good quality cable! Results can vary on budget cable.
