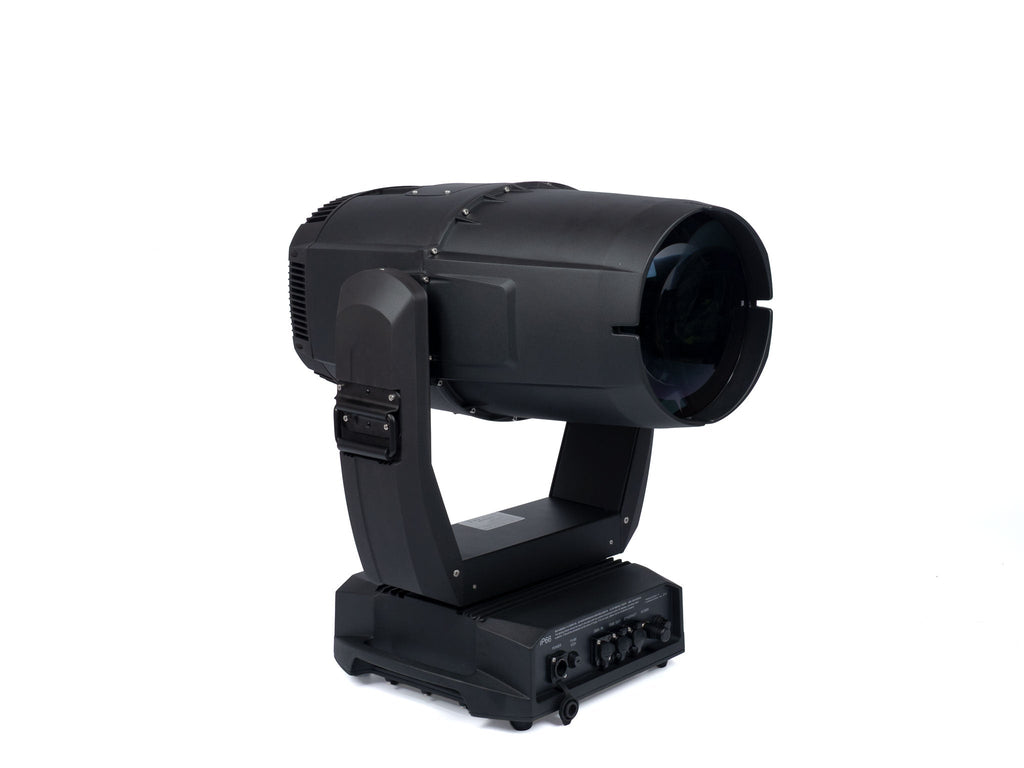

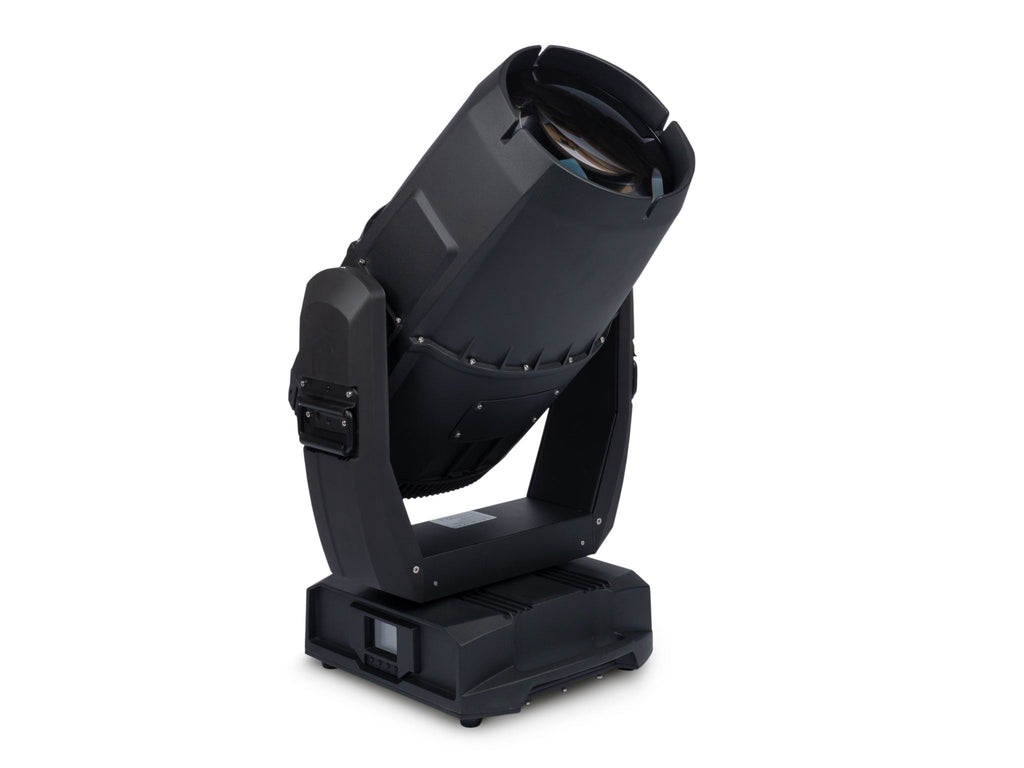

Prestige Beam 600

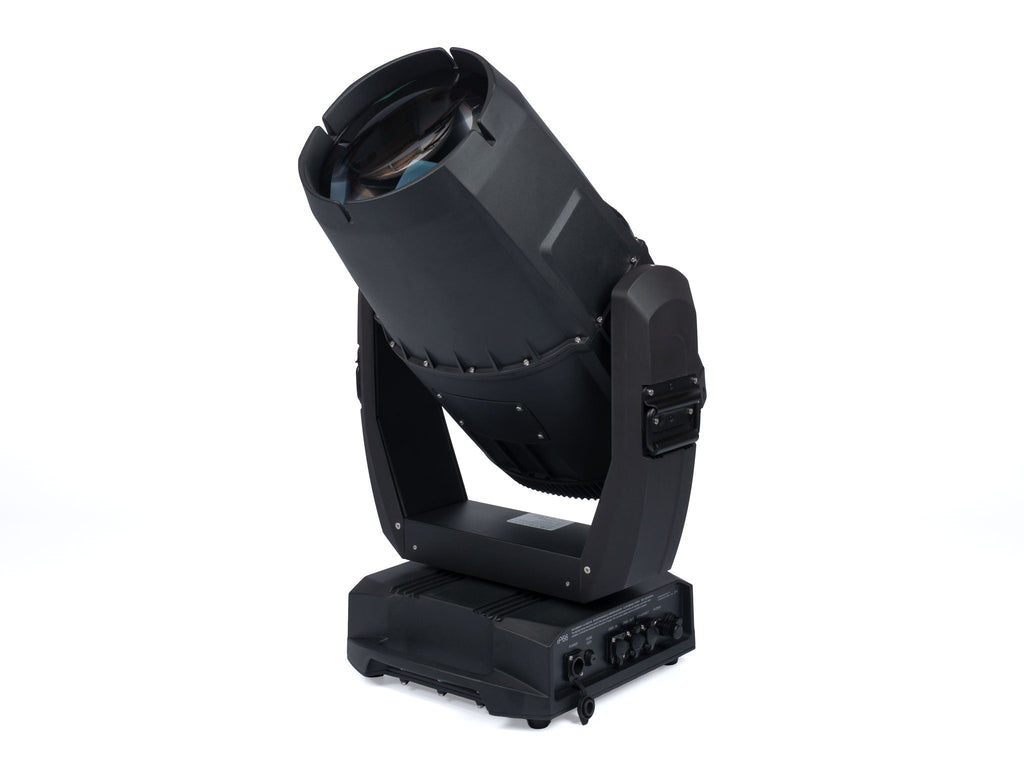

The KVANT 600 Prestige Beam is a super-bright, punchy, and very competitively priced outdoor moving head light of quality we are pleased to put our name on.
Built as an IP66 quality moving head, it comes with a state-of-the-art RGB laser source developed and manufactured by us.
As a result, this fixture outputs an enormous 34,500 lumens and provides millions of lux light intensity.
The fixture offers all the features and effects of modern moving heads, such as zoom, gobos and prisms. The colors are mixed by RGB component mixing instead of absorbing filters, resulting in much more vibrant colors.
*The Prestige Beam is not yet certified in the United States. While it has a low laser class, it should still be treated with the same safety precautions and procedures as a traditional laser projector. For additional information, please contact our sales team at hello@pangolin.com
Laser projector
Mains cable
5-pin XLR cable
Two C-clamps
Safety cord
| Model: | Kvant 600 Prestige Beam |
| Country of Origin: | Slovakia (EU) |
| Body Composition | Body Finish | Cast aluminium with high-temperature and UV resistant ABS, assembled to IP66 standard |
| Weight | Dimensions | 38 kg | 457x 557x 748mm (overall) |
| Light Source | RGB semiconductor laser |
| Max Power Consumption | 800W @ 240VAC |
| Input Voltage Range | 100 – 240V AC 50/60Hz |
| Operating Temperature | - 5°C ~ 40°C (- 20°C ~ 45°C under development) |
| Beam Angle / Zoom Range | 0.15 - 1.6° |
| Light Output (Lumens) | 34,500 lm |
| White Temperature | Tuneable White |
| CRI (Color Rendering Index) | 50 |
| Source Life (L70) | 20,000 hours |

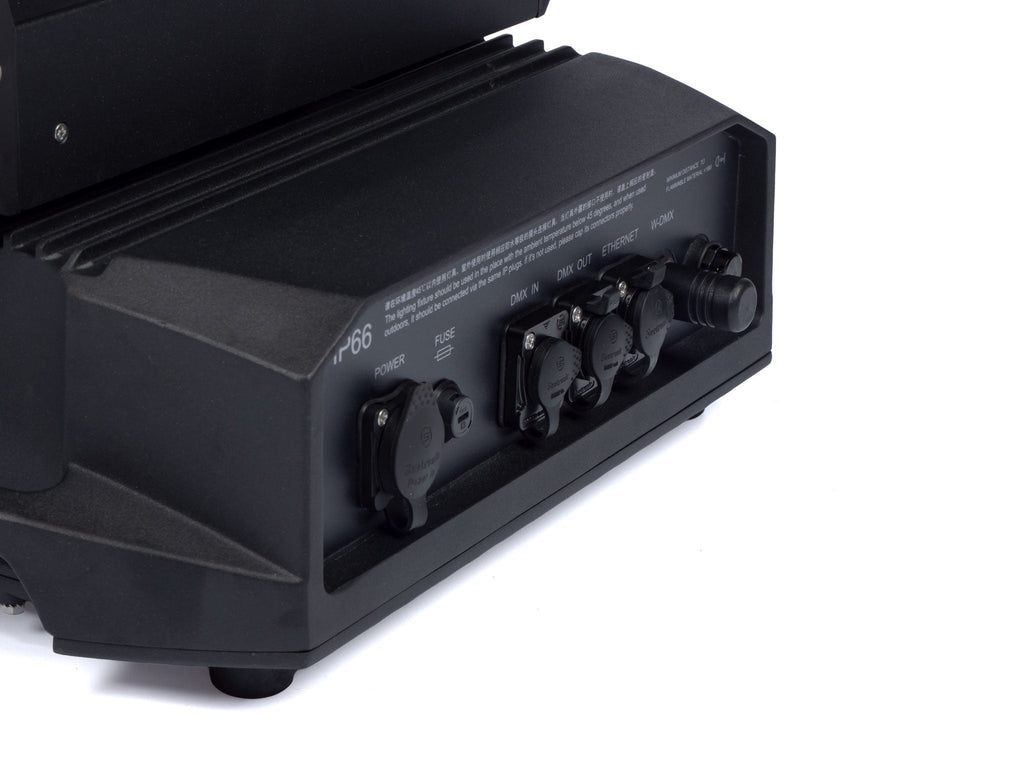

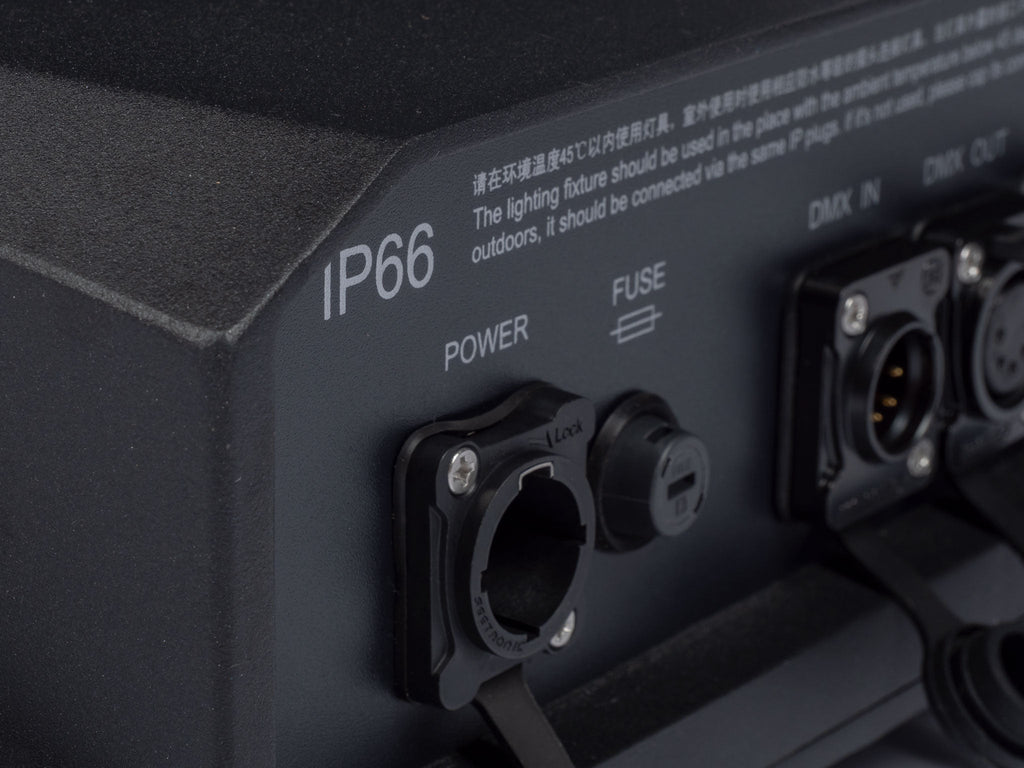

| Power Connections | Neutrick power input connector, 5-pin XRL IN/OUT, RJ45 Ethernet |
| Gobo Wheel(s) | Yes [29 + open] |
| Prism System | Yes |
| Frost / Diffusion | Yes (prism) |
| Color Mixing | Colour change by RGB component mixing (not by absorbing filters), 16 million colours available |
| Pan Range | 0° ~ 540° |
| Tilt Range | 0° ~ 270° |
| Pan/Tilt Resolution | 16bit |
| DMX Channels / Modes | Standard mode 22CH, Extended mode 24CH |
| Control Protocols | International standard DMX512 protocol |
| Wireless DMX | Yes (W-DMX) |
| Laser Class | Class 1 - Certification: RG3 IEC EN 62471-5:2015, IEC 62471-7: 2023, CLASS 1 IEC EN 60825-1:2014 |
| Special Features | Colour change by RGB component mixing (not by absorbing filters), 16 million colours, gobo wheel, prisms, dimmer/strobe function, DMX linear focus, and adjustable pan and tilt speeds. The modular construction is easy for maintenance. |
