Monsoon

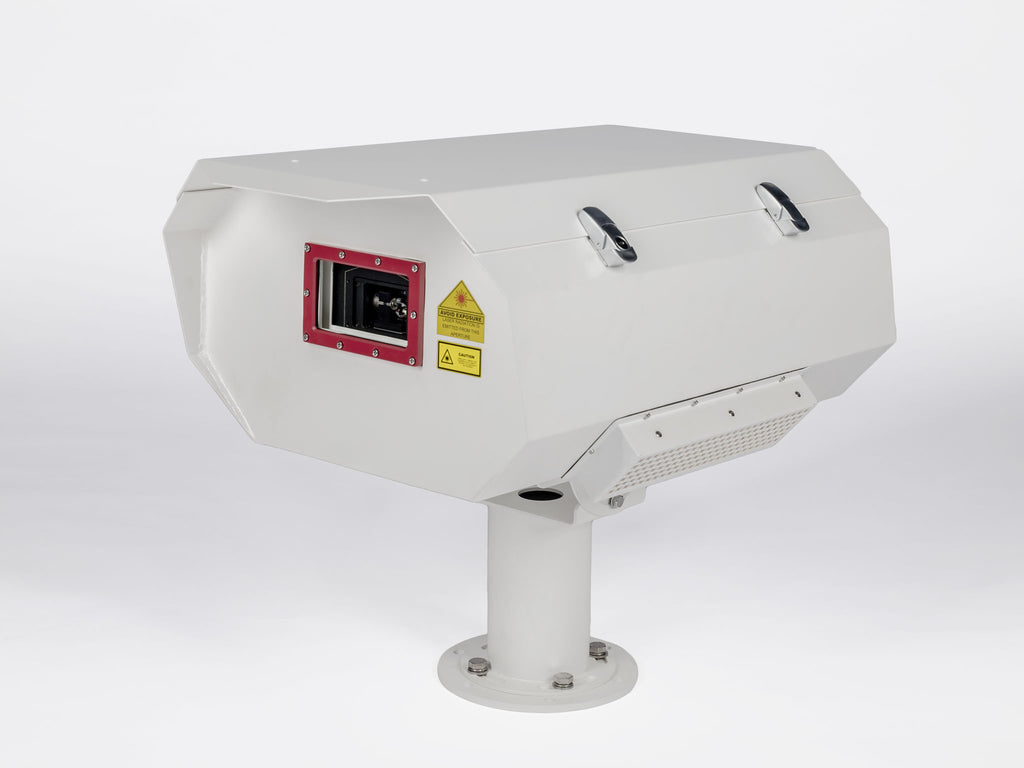

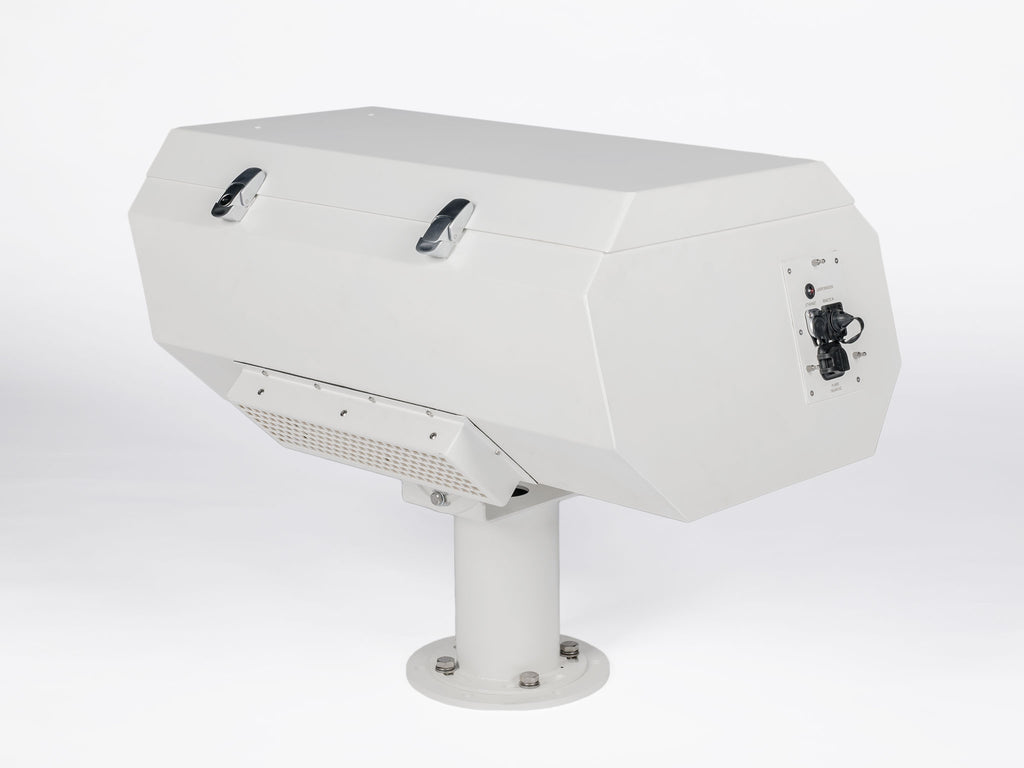

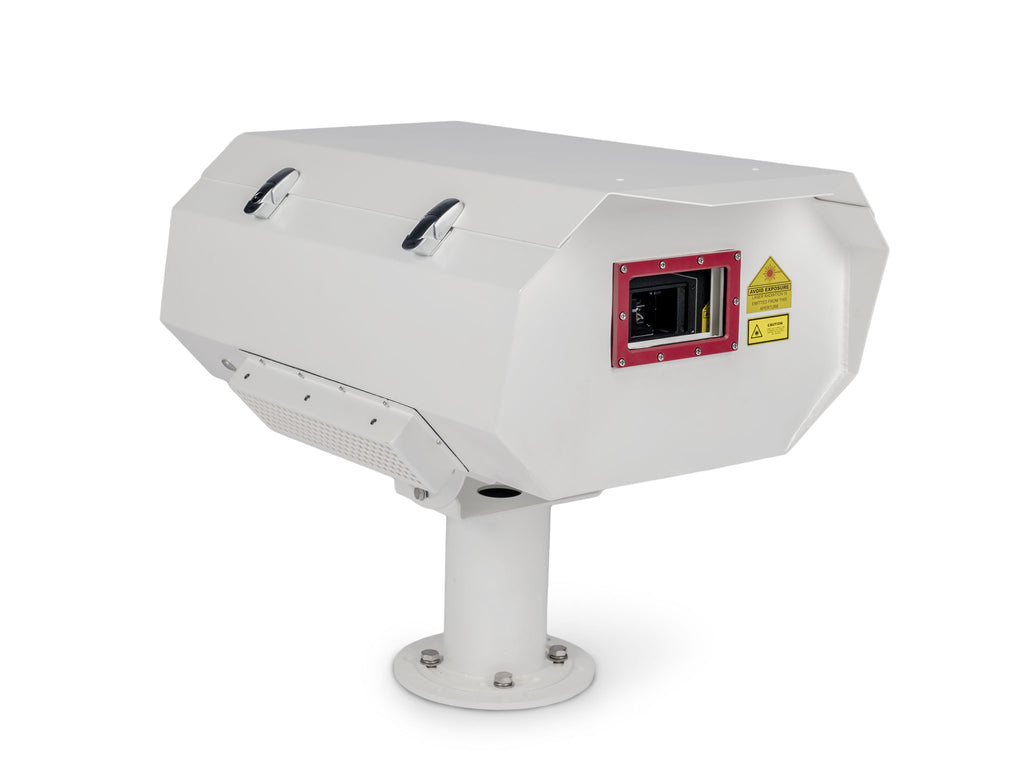

Monsoon from KVANT is a robust and durable enclosure that will protect your delicate equipment, such as Clubmax and BeamBrush laser projectors, against harsh weather conditions, extreme temperatures and high humidity.
Structurally, it is very tough in all directions. Its galvanised steel construction makes it suitable for permanent indoor & outdoor installations in almost any climate and environment. Monsoon's certified IP65 design, automatic temperature control management and quality air filters ensure protection against heat, cold, rain, snow, sand and dust.

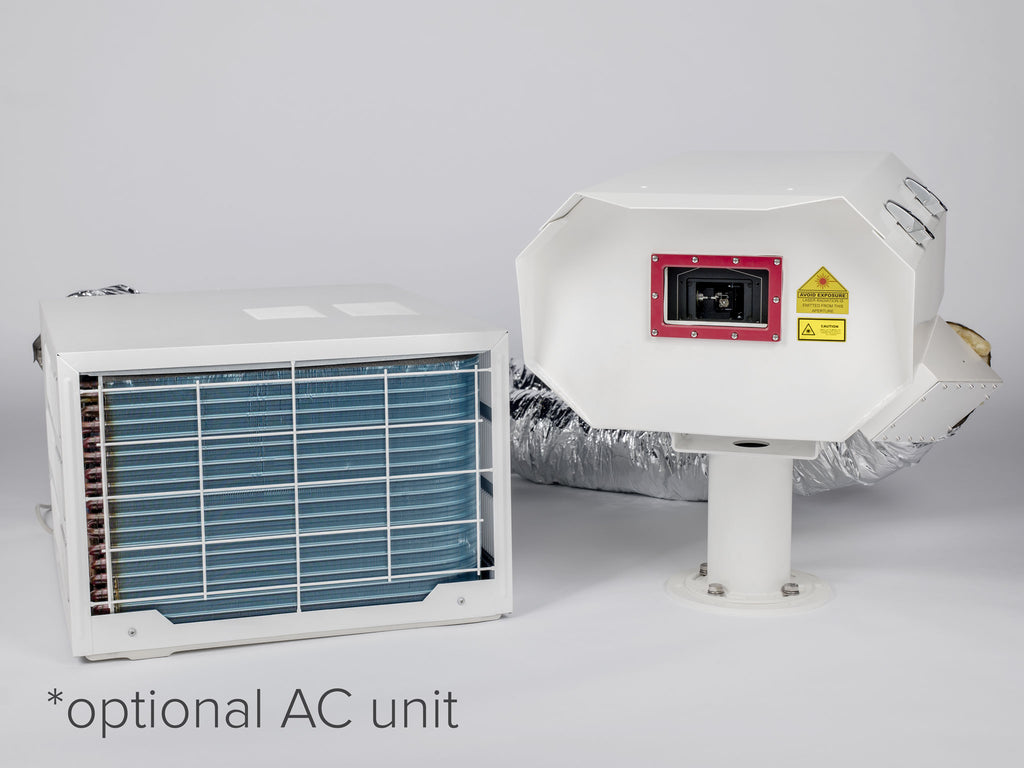

Monsoon can be supplied with or without an external AC unit. If you plan to use Monsoon in an environment with temperatures exceeding 35 °C, please make sure to choose the AC option.
| Product name: | KVANT Monsoon |
| Ingress protection rating: | IP65 [Certified] |
| Operation temperature [°C]: | -20 to +35 |
| Housing colour: | RAL 9010 as standard, other RAL colours on request |
| Laser safety: | Laser Class 4 stickers |
| Size [mm]: | 460 x 590 x 780 [WxHxD] |
| Shipping size [mm]: |
1200 x 930 x 800 [WxHxD] |
| Weight [kg] - enclosure/bracket: | 20/5 |
| Shipping weight [kg]: | 40 [can vary slightly upon packaging materials] |

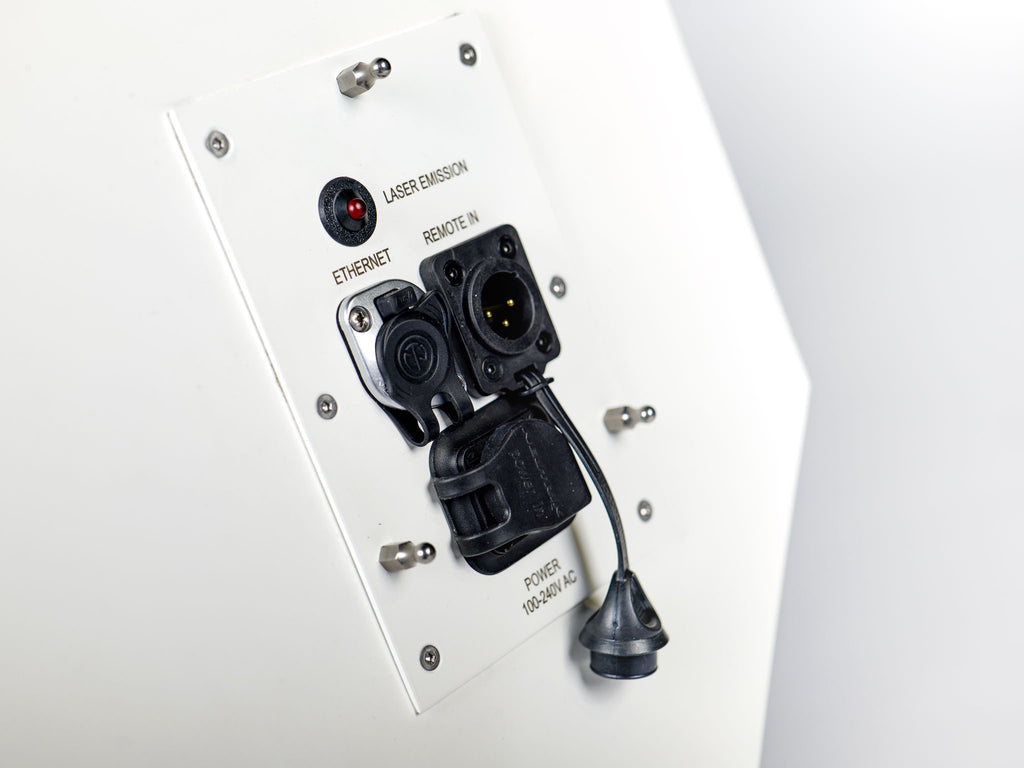

| Supplied accessories: | AC power cable, 3-pin XLR remote cable, Ethernet cable, 17/19mm spanner, mounting bracket |
| Supplied spare parts: | Air-filter |
| Available spare parts: | Aperture AR glass, air-filter |
| Supplied cable length: | 10 metres |
| Casing construction: | Two-ply with 30-50mm inner insulation foam |

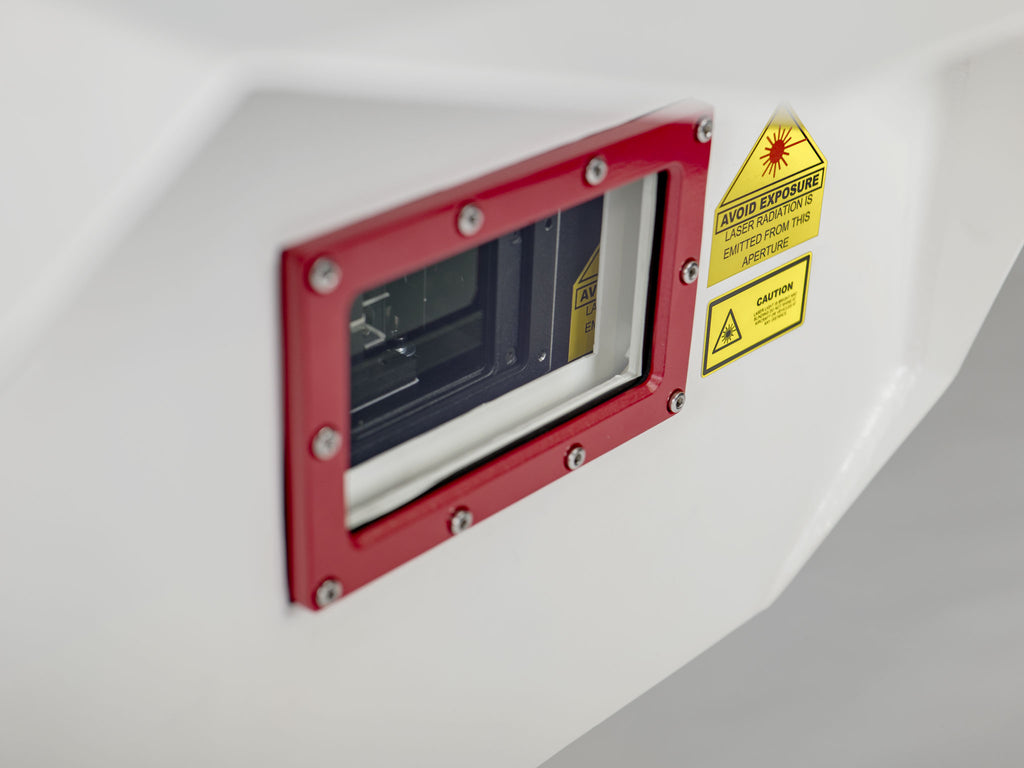

| Aperture size [mm]: | 134 x 79, 4mm thick AR glass |
| Aperture heating: | Internal; regulated with a thermostat |
| Aperture protection: | Top-side aperture overlap |
| Ventilation: | 3 to 6 cooling fans [depending on model of laser system], each 220m3/h; 71dBA |

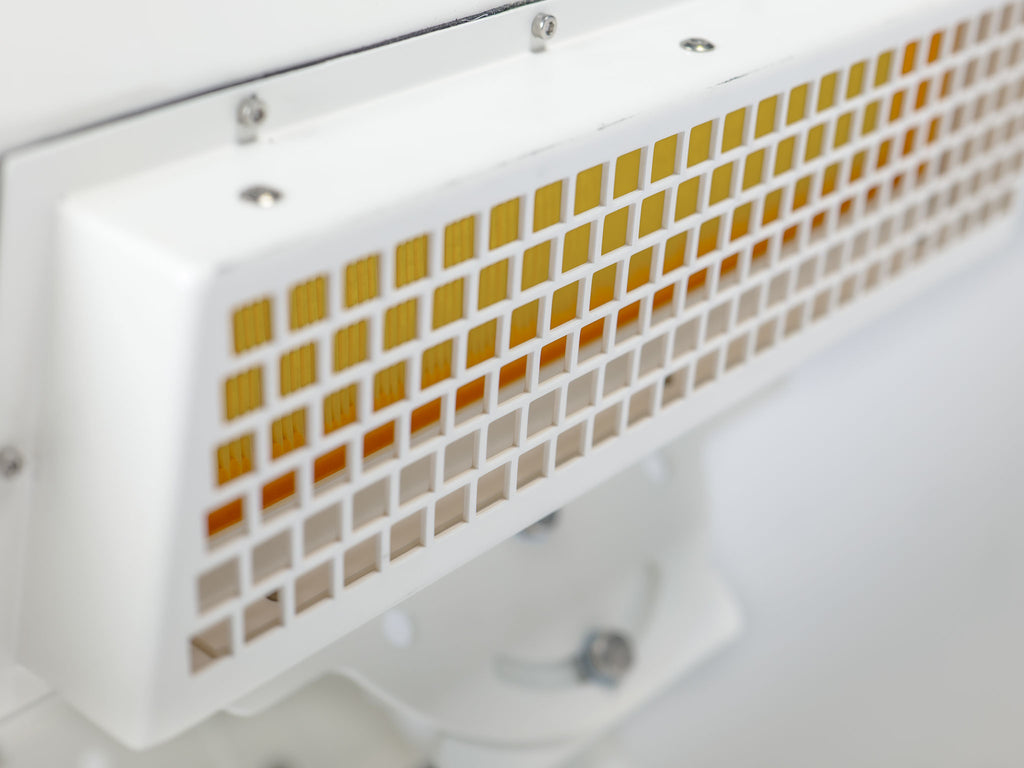

| Airflow outlet: | Front-side, below the output aperture |
| Air-conditioning: | External AC unit [optional] |
| Power requirements [V] | Input: | 100-230/50-60Hz |
| Max. power consumption [VA]: | 340 |
| Electrical safety: | 1x RCD, 1x circuit-breaker |

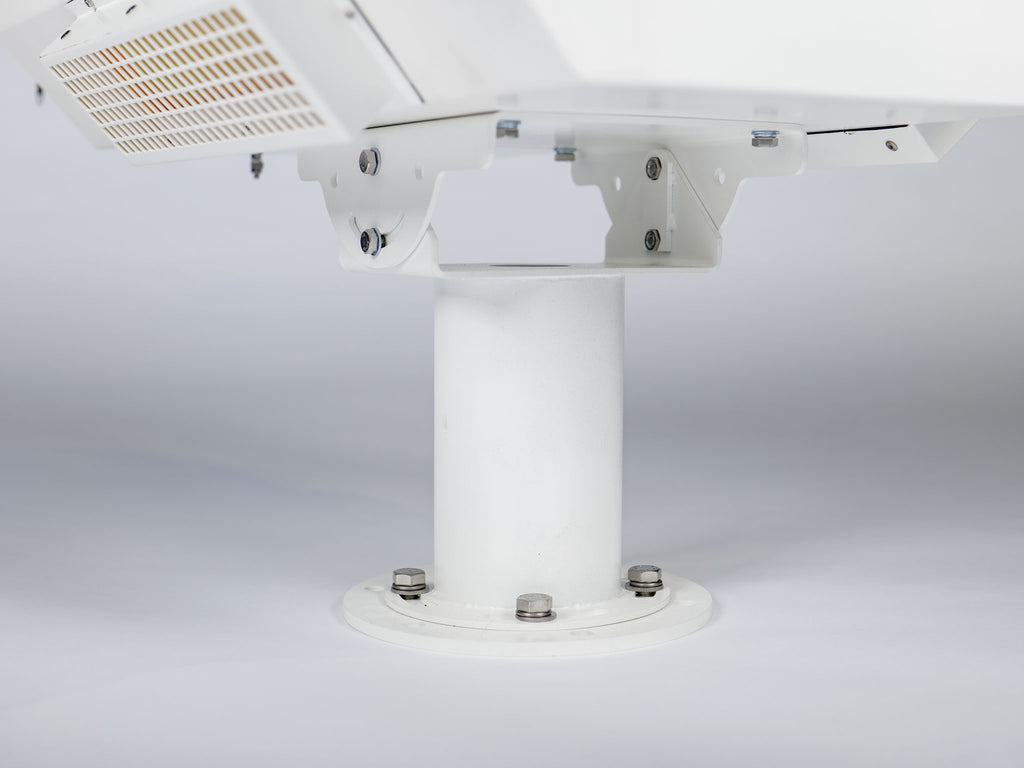

| Maximum tilt [degrees]: | 45 on both axes |

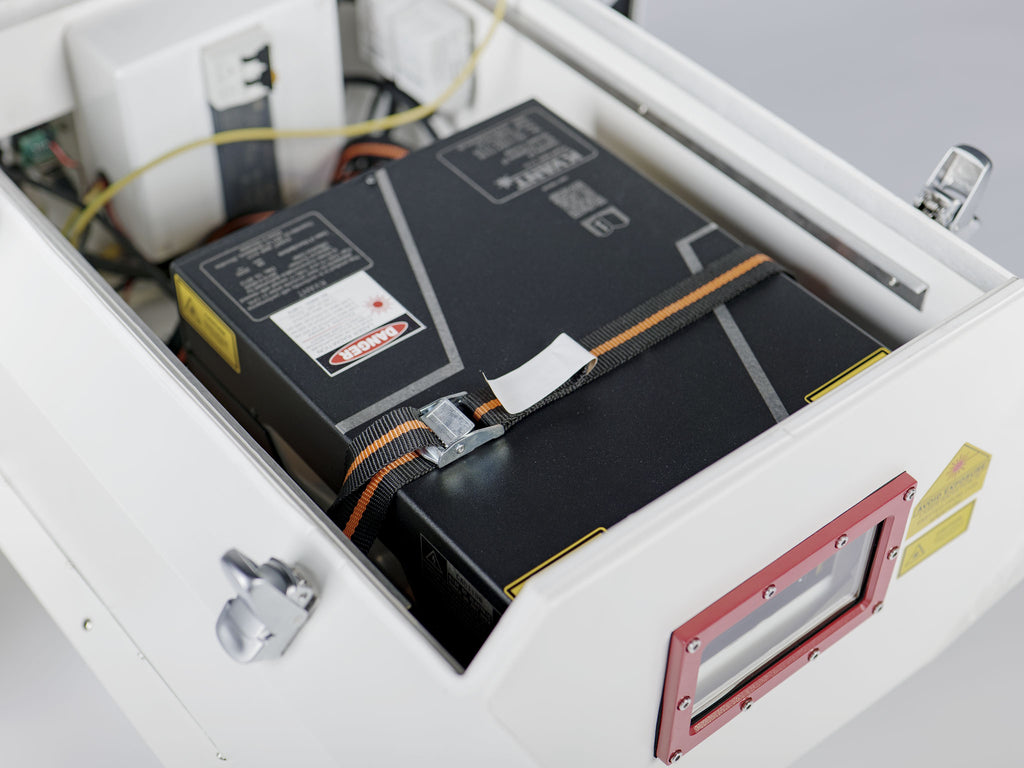

| Inside equipment fixings: | Rubber-feet slots, ratchet strap |

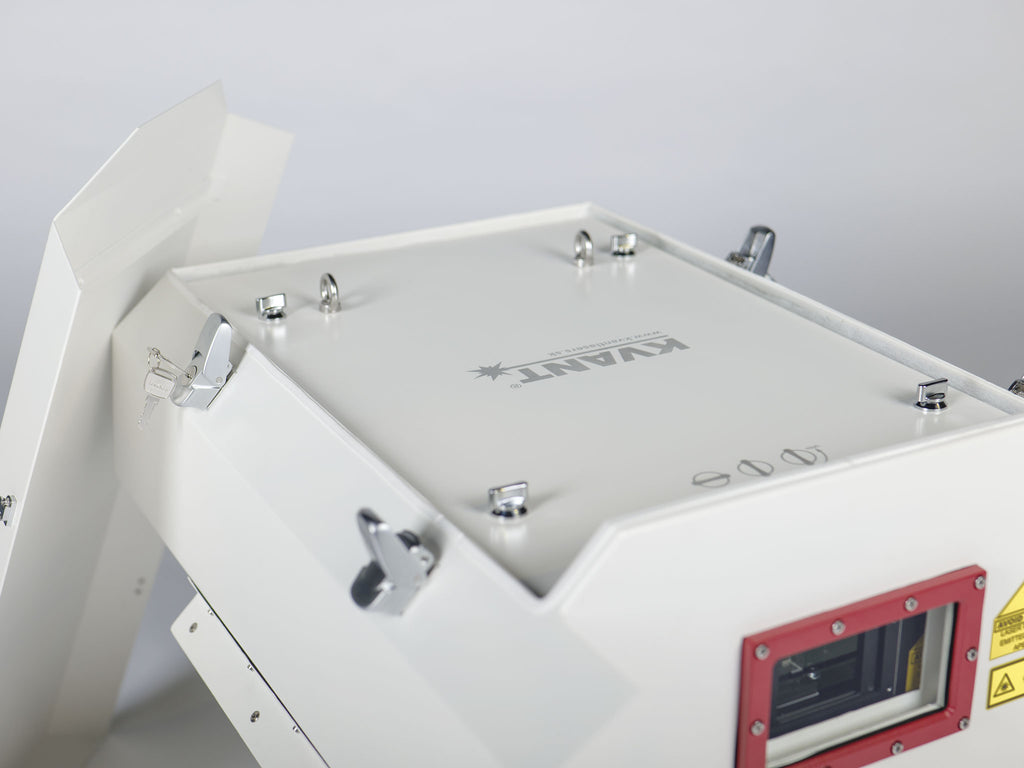

| Access restriction: | Lid lockable with 2 locks with hatches |
| Production schedule: | 4-5 weeks |
